Configuration

All settings are stored in NVS (Non-Volatile Storage) and survive firmware and filesystem updates. Configure via the web UI (Settings) or the REST API.

Settings pages

Settings has six tabs. Changes are kept until you Save; a tab with a problem shows a red dot, and settings that only take effect after a restart ask for one when you save.

DeviceNetworkTime & LocationSensorsSafetyAlerts

Name, password protection, command-line uploads (ArduinoOTA), Bluetooth.

WiFi, mDNS, and MQTT including what's published and Home Assistant discovery - see MQTT.

NTP and GPS time, time zone, and the location used for darkness and Sun & Moon.

I2C, sky quality (averaging, SQM offset, dark calibration), cloud detection, the RG-15 rain sensor and the anemometer.

ASCOM Alpaca and the safety rules - see ASCOM Alpaca.

Events, levels, wording and channels - see Alerts.

---

Full Configuration Reference

{
  "deviceName": "SQM-ESP32",
  "primaryTimeSource": 0,
  "secondaryTimeSource": 1,

  "wifi": {
    "ssid": "YourWiFiSSID",
    "password": "YourWiFiPassword",
    "hostname": "sqmeter",
    "mdns": true,
    "autoReconnect": true,
    "reconnectDelayMs": 1000,
    "maxReconnectDelayMs": 300000
  },

  "ntp": {
    "enabled": true,
    "server1": "pool.ntp.org",
    "server2": "time.nist.gov",
    "timezone": "UTC0",
    "syncIntervalMs": 600000
  },

  "gps": {
    "enabled": false,
    "rxPin": 17,
    "txPin": 16,
    "baudRate": 9600
  },

  "mqtt": {
    "enabled": false,
    "broker": "mqtt.example.com",
    "port": 1883,
    "username": "",
    "password": "",
    "topic": "sqmeter",
    "publishIntervalMs": 60000,
    "publish": { "sky": true, "environment": true, "clouds": true, "gps": true, "rain": true, "wind": true, "safety": true, "diagnostics": false },
    "homeAssistant": { "enabled": false, "discoveryPrefix": "homeassistant" }
  },

  "ota": {
    "enabled": false,
    "password": ""
  },

  "auth": {
    "enabled": false,
    "username": "admin",
    "password": ""
  },

  "rain": {
    "enabled": false,
    "rxPin": 18,
    "txPin": 19,
    "baudRate": 9600,
    "debugUart": false,
    "mode": "polling",
    "resolution": "high",
    "units": "metric",
    "pollIntervalMs": 5000,
    "rainClearDelayMs": 900000,
    "dailyResetEnabled": false,
    "dailyResetHour": 0,
    "dailyResetMinute": 0
  },

  "sensor": {
    "readIntervalMs": 5000,
    "i2cSDA": 21,
    "i2cSCL": 22,
    "i2cFrequency": 100000
  },

  "skyAveraging": {
    "windowSeconds": 90
  },

  "skyCalibration": {
    "enabled": false,
    "sqmOffset": 0,
    "darkVisibleOffset": 0,
    "darkFullOffset": 0,
    "darkIrOffset": 0,
    "darkSampleCount": 0,
    "darkCalibratedAt": 0
  },

  "cloudDetection": {
    "clearSkyThreshold": -13,
    "cloudyThreshold": -3,
    "humidityCorrection": 0.75
  },

  "location": {
    "set": false,
    "latitude": 0,
    "longitude": 0,
    "showSunMoon": true
  },

  "alpaca": {
    "enabled": false,
    "manualOverrideUnsafe": false,
    "staleAfterSeconds": 30,
    "safeDelaySeconds": 0,
    "cloudCoverEnabled": true,
    "cloudCoverUnsafePercent": 90,
    "sqmMinEnabled": false,
    "sqmMinSafe": 0,
    "humidityMaxEnabled": false,
    "humidityMaxSafe": 100,
    "dewpointMarginEnabled": false,
    "dewpointMarginMinC": 0,
    "rainUnsafeEnabled": true,
    "rainSensorRequired": true,
    "windSpeedUnsafeEnabled": false,
    "windSpeedUnsafeMs": 10,
    "windGustUnsafeEnabled": false,
    "windGustUnsafeMs": 15
  },

  "alerts": {
    "enabled": false,
    "events": {
      "unsafe": { "level": 3, "sound": "", "title": "", "message": "" },
      "safe": { "level": 2, "sound": "", "title": "", "message": "" },
      "rain_started": { "level": 4, "sound": "", "title": "", "message": "" },
      "rain_stopped": { "level": 2, "sound": "", "title": "", "message": "" },
      "sensor_fault": { "level": 4, "sound": "", "title": "", "message": "" },
      "sensor_recovered": { "level": 1, "sound": "", "title": "", "message": "" },
      "dew_risk": { "level": 0, "sound": "", "title": "", "message": "" },
      "clear_sky": { "level": 0, "sound": "", "title": "", "message": "" },
      "clouded_over": { "level": 0, "sound": "", "title": "", "message": "" }
    },
    "dewRiskMarginC": 2,
    "clearSkyCloudPercent": 20,
    "cloudedOverCloudPercent": 70,
    "skyNightOnly": true,
    "safetyNightOnly": true,
    "nightSunAltitudeDeg": -12,
    "armWithAlpaca": false,
    "cooldownSeconds": 300,
    "pushover": { "enabled": false, "userKey": "", "appToken": "", "sound": "" },
    "ntfy": { "enabled": false, "server": "https://ntfy.sh", "topic": "", "token": "" },
    "webhook": { "enabled": false, "url": "", "authHeader": "", "insecureTls": false },
    "mqtt": { "enabled": false }
  },

  "ble": {
    "enabled": false,
    "passkey": ""
  },

  "wind": {
    "enabled": false,
    "speedPin": 27,
    "directionEnabled": false,
    "directionPin": 35,
    "kmhPerHz": 2.4,
    "directionOffsetDeg": 0,
    "vanePullupOhms": 10000
  }
}

In the web UI these live on Settings tabs: Device (name, security, Bluetooth), Network (WiFi, MQTT), Time & Location, Sensors (sensors, rain, wind, calibration), Safety (alpaca) and Alerts.

---

Fields

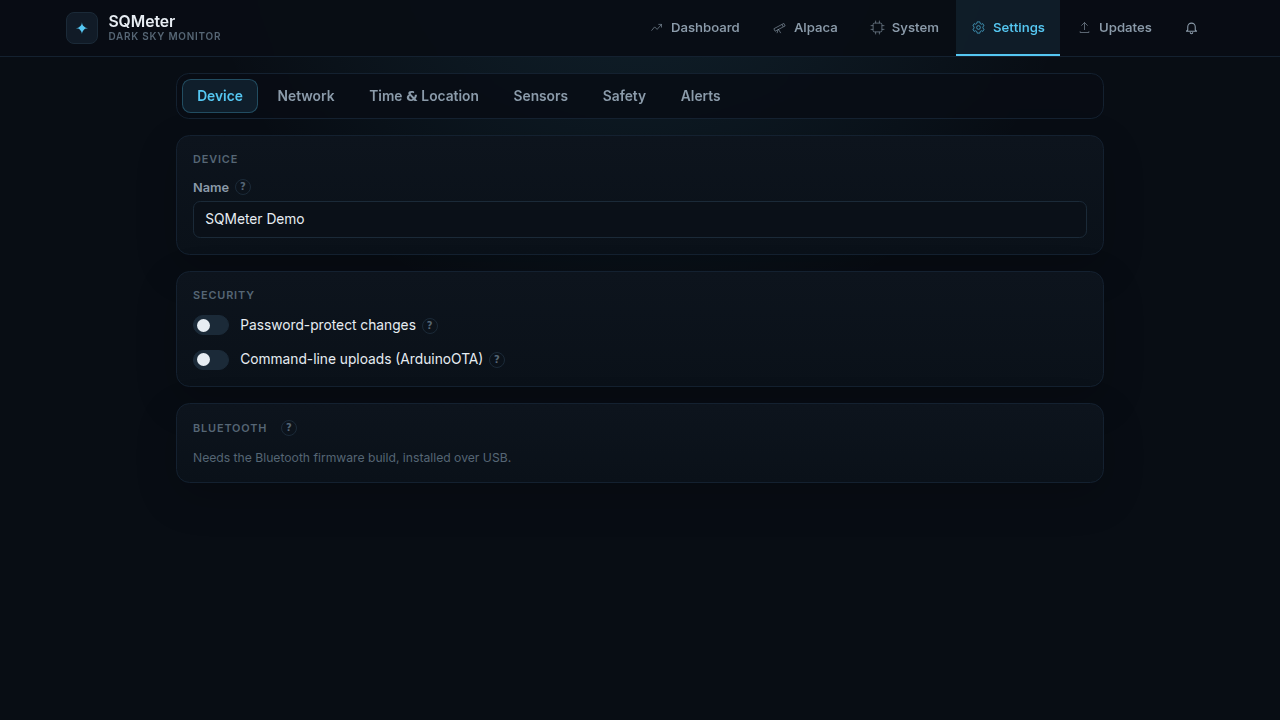

Device

Field	Type	Default	Description
deviceName	string	"SQM-ESP32"	Friendly name shown in the web UI
primaryTimeSource	int	0	Primary time source: 0 = NTP, 1 = GPS
secondaryTimeSource	int	1	Fallback time source: 0 = NTP, 1 = GPS

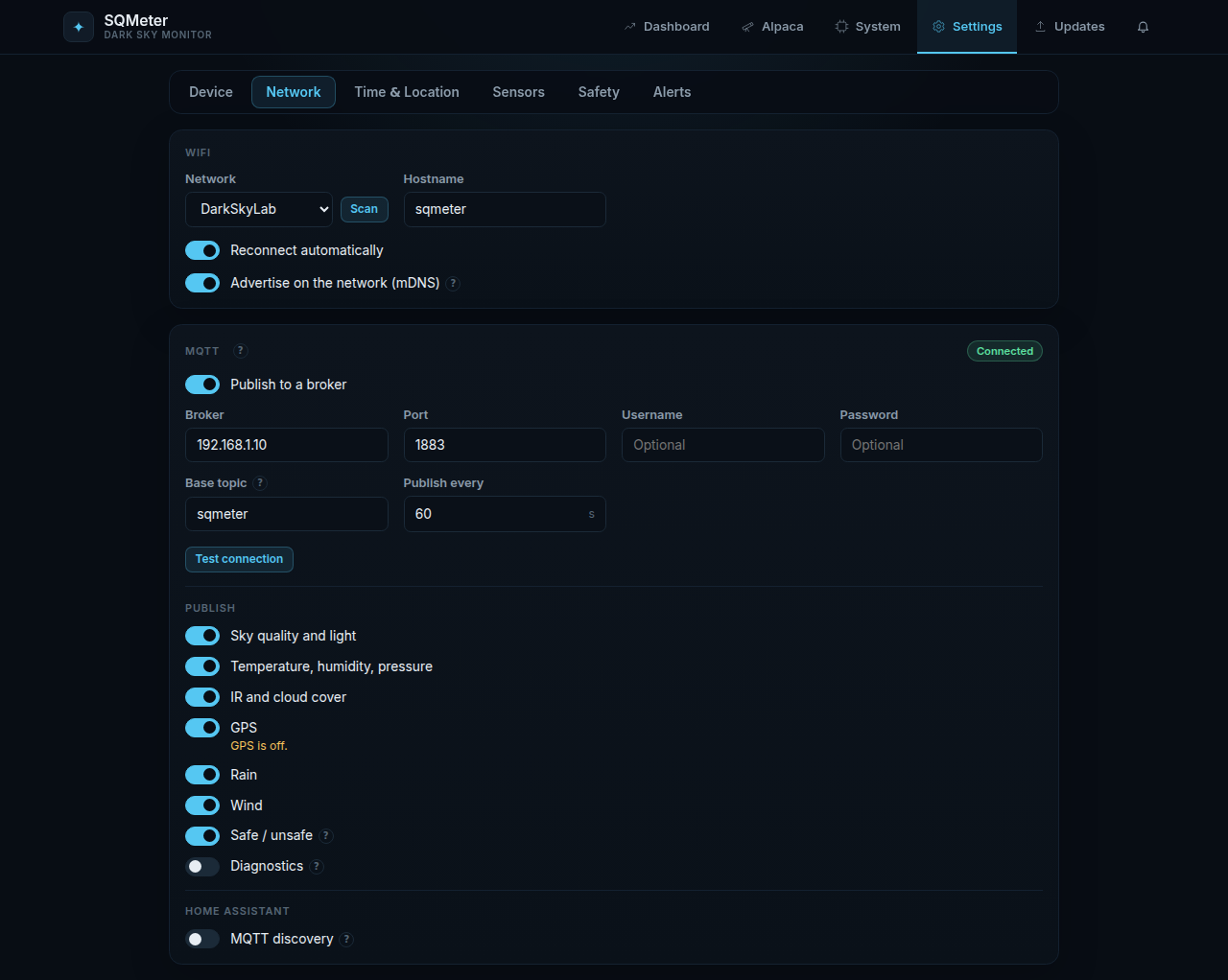

WiFi

Field	Type	Default	Description
ssid	string	—	Network name (2.4 GHz only)
password	string	—	Network password
hostname	string	"sqmeter"	Network name: hostname.local via mDNS and the DHCP host name. Letters, numbers and hyphens, up to 32
mdns	bool	true	Advertise hostname.local and the web service via mDNS
autoReconnect	bool	true	Reconnect on WiFi drop
reconnectDelayMs	int	1000	Initial reconnect delay (ms)
maxReconnectDelayMs	int	300000	Max reconnect backoff — 5 min

NTP

Field	Type	Default	Description
enabled	bool	true	Enable NTP time sync
server1	string	"pool.ntp.org"	Primary NTP server
server2	string	"time.nist.gov"	Fallback NTP server
timezone	string	"UTC0"	POSIX timezone string
syncIntervalMs	int	600000	Re-sync interval — default 10 minutes

POSIX timezone strings

Examples: GMT0, EST5EDT,M3.2.0,M11.1.0, PST8PDT,M3.2.0,M11.1.0, CET-1CEST,M3.5.0,M10.5.0/3. A full list is available at timezonedb.com.

GPS

Field	Type	Default	Description
enabled	bool	false	Enable GPS module
rxPin	int	17	ESP32 RX pin (connects to GPS TX)
txPin	int	16	ESP32 TX pin (connects to GPS RX)
baudRate	int	9600	GPS module baud rate (typically 9600)

When GPS is enabled and has a fix, it can serve as the primary time source for accurate timestamps independent of network connectivity.

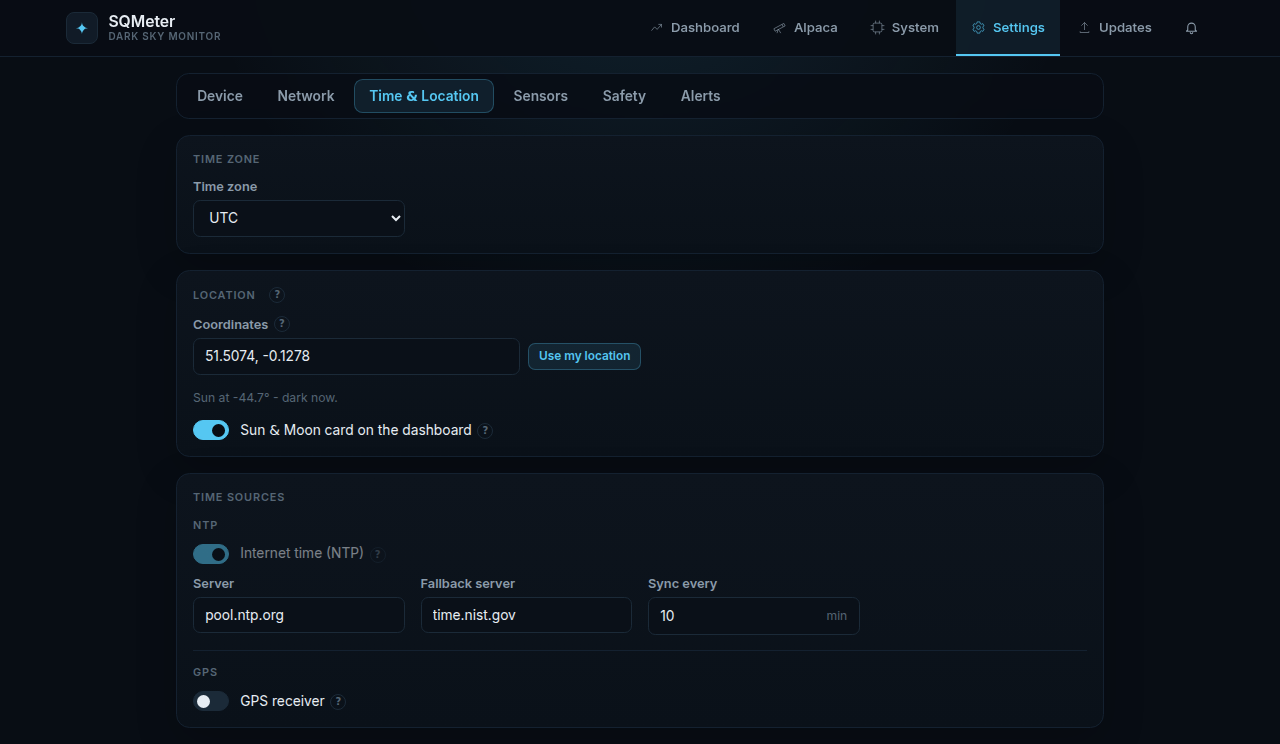

Location

Field	Default	Description
location.set	false	Whether coordinates have been entered. A GPS fix takes precedence
location.latitude / location.longitude	0	Decimal degrees, used for darkness (sky alerts) and the Sun & Moon card
location.showSunMoon	true	Show the Sun & Moon card on the dashboard: twilight phase, tonight's astronomical dark, moon phase and illumination, and the next sunrise/sunset and moonrise/moonset. Computed in the browser

MQTT

Field	Type	Default	Description
enabled	bool	false	Enable MQTT publishing
broker	string	—	Broker hostname or IP
port	int	1883	Broker port
username	string	""	Auth username (leave empty if none)
password	string	""	Auth password
topic	string	"sqmeter"	Base topic: letters, numbers, _, -, with / between levels. See MQTT
publishIntervalMs	int	60000	How often <topic>/state is published (1 s – 24 h)
publish.sky, .environment, .clouds, .gps, .rain, .wind	bool	true	Groups included in <topic>/state
publish.safety	bool	true	Publish <topic>/safe and <topic>/safety
publish.diagnostics	bool	false	Publish <topic>/diagnostics
homeAssistant.enabled	bool	false	Home Assistant MQTT discovery
homeAssistant.discoveryPrefix	string	"homeassistant"	Discovery prefix

ArduinoOTA

Field	Type	Default	Description
enabled	bool	false	Enable command-line ArduinoOTA uploads
password	string	""	Required when command-line ArduinoOTA is enabled

ArduinoOTA is disabled unless both ota.enabled is true and ota.password is set. The web UI OTA upload page is separate from command-line ArduinoOTA.

HTTP Authentication

Field	Type	Default	Description
enabled	bool	false	Require credentials for mutation endpoints
username	string	"admin"	Username for HTTP Basic Auth
password	string	""	Password (required when auth is enabled)

When auth.enabled is true, the following endpoints require HTTP Basic Auth credentials:

• POST /api/config — save configuration
• POST /api/restart — restart device
• POST /api/update — firmware OTA upload
• POST /api/update/fs — filesystem OTA upload
• POST /api/wifi/connect — change WiFi network
• POST /api/mqtt/test — test MQTT connection

Read-only endpoints remain accessible without credentials:

• GET /api/sensors, GET /api/status, GET /api/config
• WebSocket streams (/ws/sensors, /ws/status)

The auth.password field is masked in GET /api/config responses. Send the mask placeholder or an empty string to preserve the stored password; send null to clear it.

Rain Sensor

Field	Type	Default	Description
enabled	bool	false	Enable Hydreon RG-15 rain sensor
rxPin	int	18	ESP32 RX pin (connects to RG-15 TX)
txPin	int	19	ESP32 TX pin (connects to RG-15 RX)
baudRate	int	9600	RG-15 serial baud rate
debugUart	bool	false	Log RG-15 UART command/response traffic
mode	string	"polling"	Compatibility field; RG-15 communication is polling-only
resolution	string	"high"	"high", "low", or "switch"
units	string	"metric"	"metric", "imperial", or "switch"
pollIntervalMs	int	5000	Interval between RG-15 R commands in polling mode
rainClearDelayMs	int	900000	Local rain latch clear delay after intensity returns to zero
dailyResetEnabled	bool	false	Reset RG-15 total accumulation once per day
dailyResetHour	int	0	Local hour for scheduled total reset
dailyResetMinute	int	0	Local minute for scheduled total reset

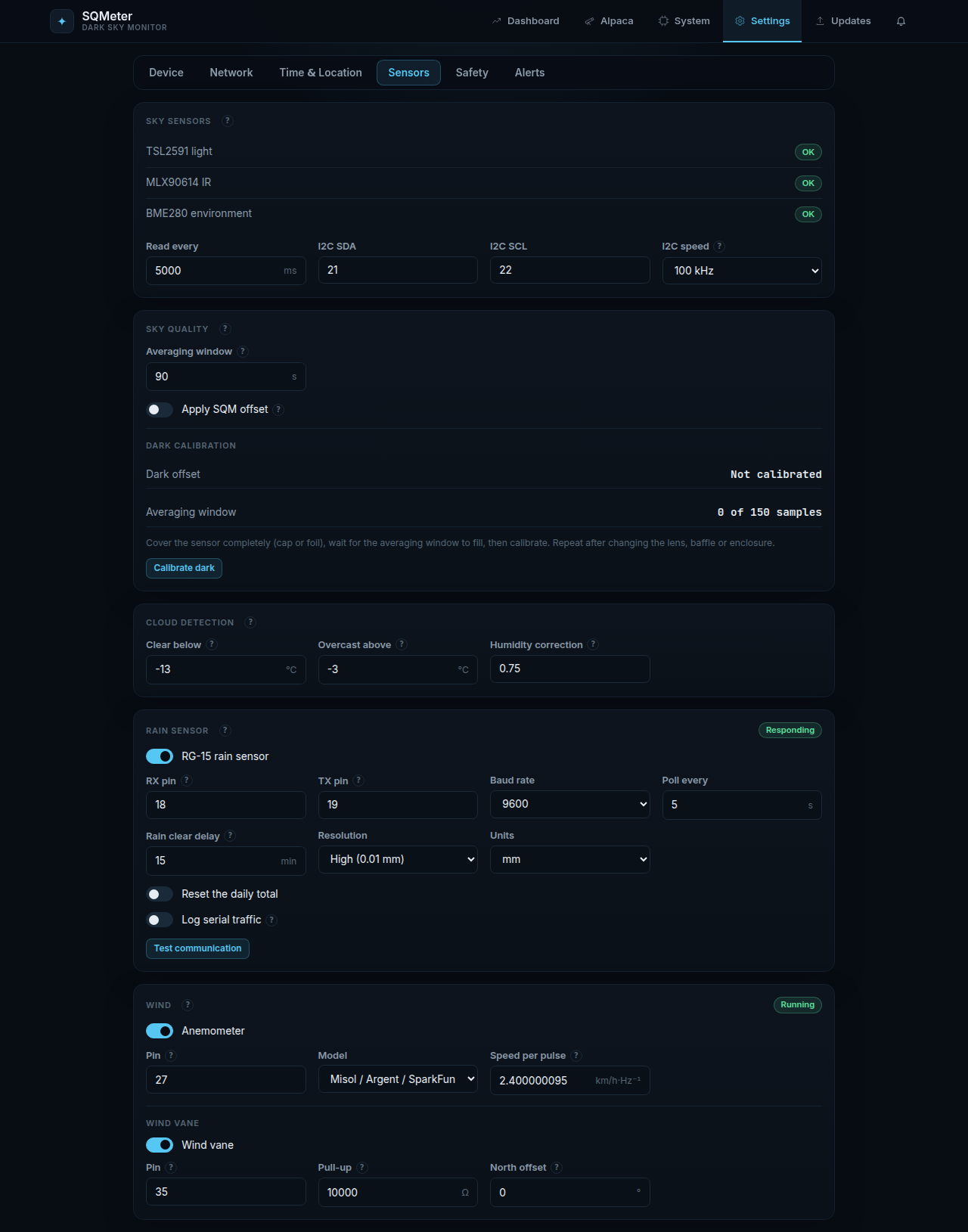

Sensor

Field	Type	Default	Description
readIntervalMs	int	5000	How often sensors are polled (ms)
i2cSDA	int	21	SDA GPIO pin
i2cSCL	int	22	SCL GPIO pin
i2cFrequency	int	100000	I2C clock speed (Hz)

The TSL2591 light sensor is sampled separately at approximately 600 ms cadence so dark-sky rolling averages are not limited by readIntervalMs.

Sky Averaging

Field	Type	Default	Description
windowSeconds	int	90	Rolling raw-count averaging window for night SQM readings. Valid range is 10-300 seconds.

Sky Calibration

Field	Type	Default	Description
enabled	bool	false	Apply sqmOffset to the rolling SQM result
sqmOffset	float	0	Absolute SQM correction after comparison with a reference SQM/SQM-L
darkVisibleOffset	float	0	Saved dark visible-count floor subtracted before lux/SQM conversion
darkFullOffset	float	0	Reserved dark full-channel statistic
darkIrOffset	float	0	Reserved dark IR-channel statistic
darkSampleCount	int	0	Number of rolling samples used when dark calibration was stored
darkCalibratedAt	int	0	Epoch timestamp when available, otherwise device milliseconds

To set the dark floor, cover the lens/baffle aperture with an opaque cap, wait for skyAveraging.windowSeconds, then call POST /api/sensors/tsl2591/calibrate-dark.

Cloud Detection

Cloud cover comes from the MLX90614: how much colder the sky is than the air (sky minus ambient, °C), corrected for humidity.

Field	Type	Default	Description
clearSkyThreshold	float	-13	Corrected delta at or below this is clear (0%)
cloudyThreshold	float	-3	Corrected delta at or above this is overcast (100%); linear in between
humidityCorrection	float	0.75	How strongly humidity is corrected for

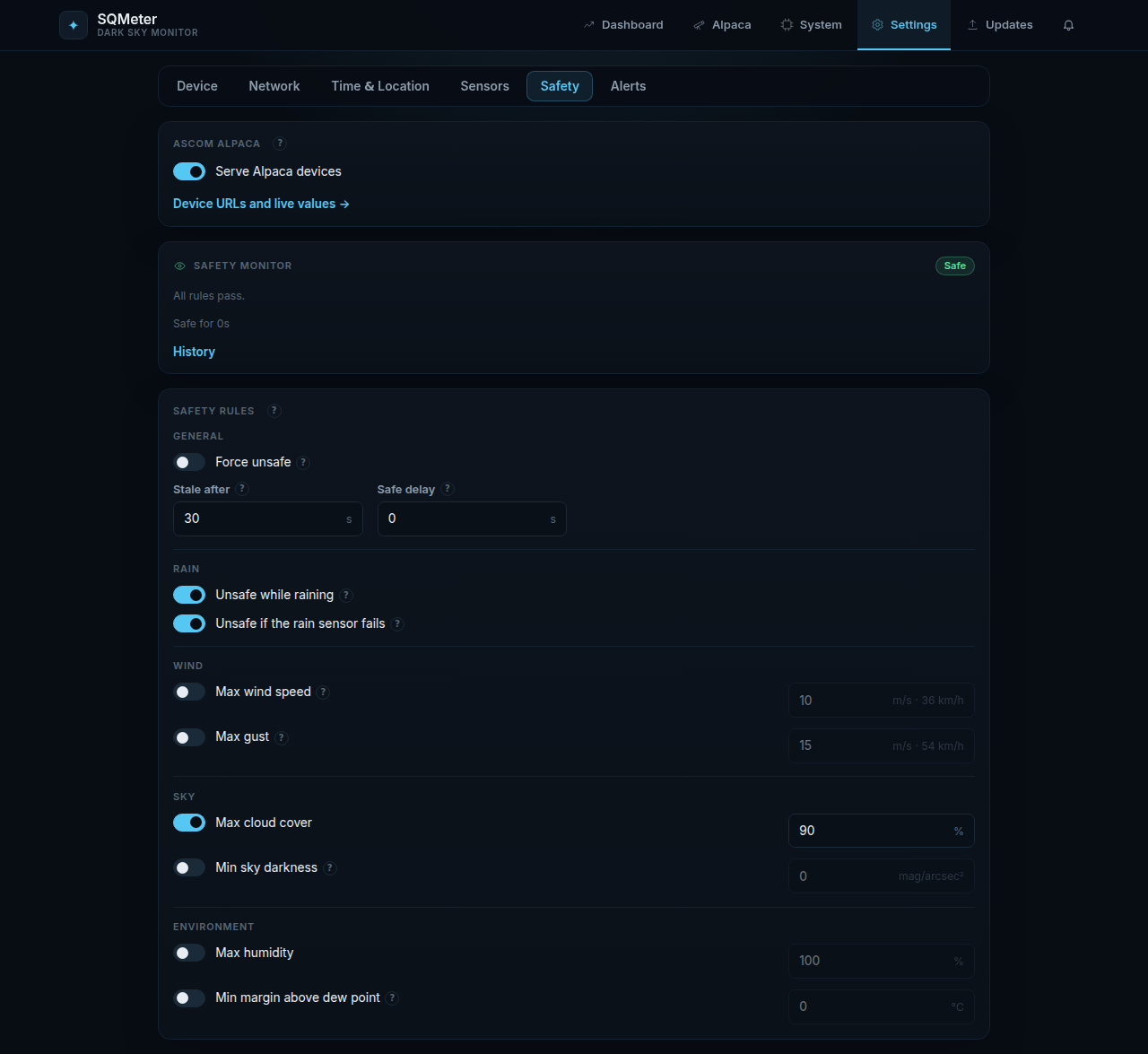

Safety rules (alpaca)

The SafetyMonitor verdict served to N.I.N.A., shown on the dashboard and used for alerts. See ASCOM Alpaca for how the rules combine.

Field	Type	Default	Description
enabled	bool	false	Serve the Alpaca SafetyMonitor and ObservingConditions devices
manualOverrideUnsafe	bool	false	Force unsafe
staleAfterSeconds	int	30	Sensor data older than this is unsafe (1-3600)
safeDelaySeconds	int	0	Conditions must stay safe this long before reporting safe; also runs from boot (0-3600)
cloudCoverEnabled / cloudCoverUnsafePercent	bool / float	true / 90	Unsafe at or above this cloud cover (0-100)
sqmMinEnabled / sqmMinSafe	bool / float	false / 0	Unsafe below this SQM (0-30)
humidityMaxEnabled / humidityMaxSafe	bool / float	false / 100	Unsafe above this humidity (0-100)
dewpointMarginEnabled / dewpointMarginMinC	bool / float	false / 0	Unsafe when temperature minus dew point is below this (0-20 °C)
rainUnsafeEnabled	bool	true	Unsafe while the RG-15 reports rain, and until rain.rainClearDelayMs after it stops
rainSensorRequired	bool	true	Unsafe if the enabled RG-15 is offline, stale or reports a lens fault
windSpeedUnsafeEnabled / windSpeedUnsafeMs	bool / float	false / 10	Unsafe at or above this wind speed (m/s, up to 60)
windGustUnsafeEnabled / windGustUnsafeMs	bool / float	false / 15	Unsafe at or above this gust (m/s, up to 80)

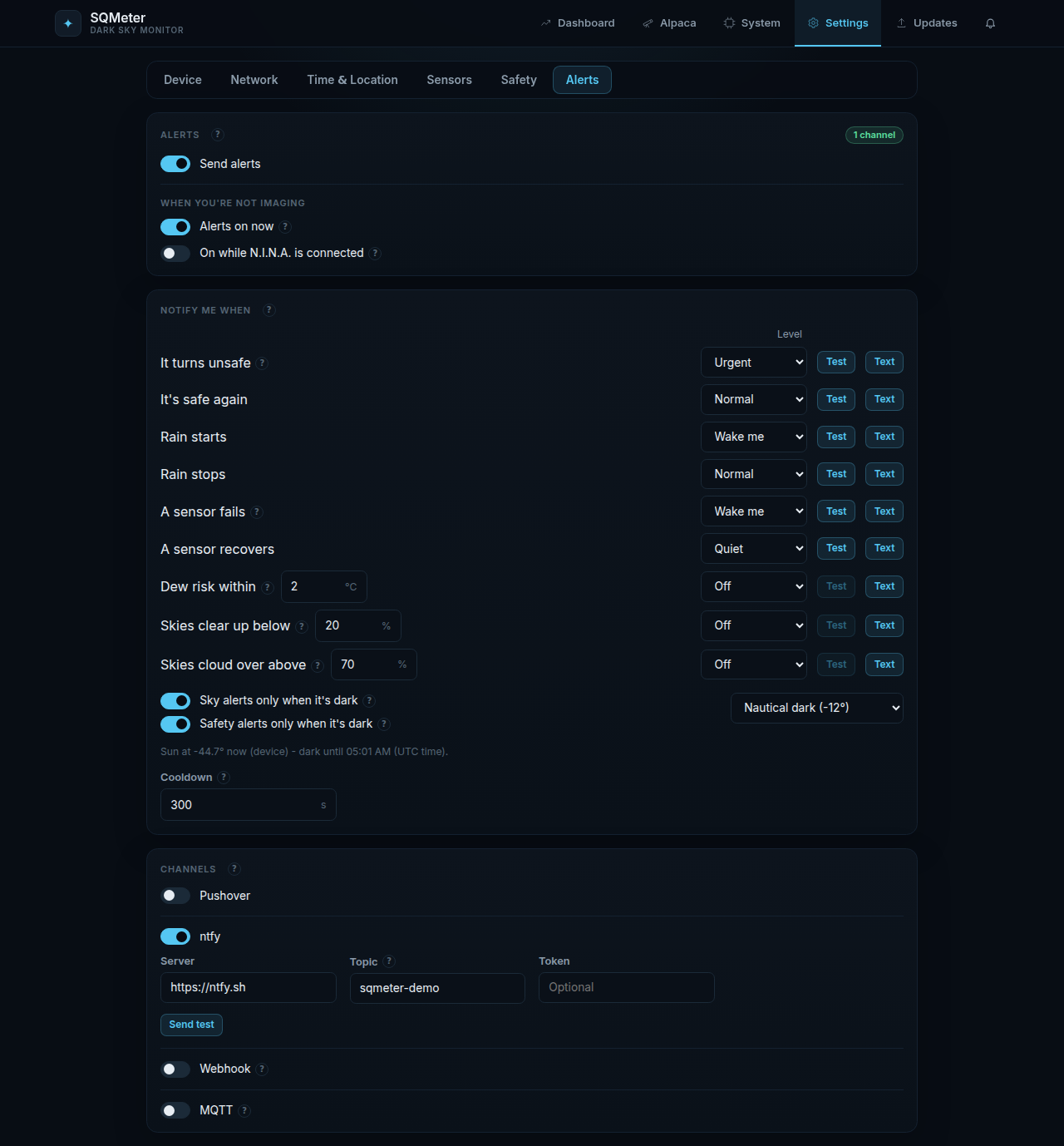

Alerts

See Alerts for events, levels and channels.

Field	Type	Default	Description
enabled	bool	false	Send alerts at all
events.<event>.level	int	see above	0 off, 1 quiet, 2 normal, 3 urgent, 4 wake me
events.<event>.sound	string	""	Pushover sound; empty uses pushover.sound
events.<event>.title / .message	string	""	Your own wording with {variables} (up to 80 / 240 characters); empty uses the default
dewRiskMarginC	float	2	Dew risk when temperature is within this of the dew point
clearSkyCloudPercent / cloudedOverCloudPercent	float	20 / 70	"Skies clear up" below / "cloud over" above
skyNightOnly / safetyNightOnly	bool	true / true	Sky / safe-unsafe alerts only while it's dark
nightSunAltitudeDeg	float	-12	"Dark" means the sun below this (-0.833 sunset, -12 nautical, -18 astronomical)
armWithAlpaca	bool	false	Switch alerts on/off as N.I.N.A. connects/disconnects
cooldownSeconds	int	300	Minimum gap between alerts of the same kind (0-86400)
pushover, ntfy, webhook, mqtt	object	off	Channel settings; secrets are masked in GET /api/config

Alerts on/off (for when you're not imaging) is live state, not a setting - see Alerts.

Bluetooth (ble)

Only used by the Bluetooth firmware build. See Bluetooth.

Field	Type	Default	Description
enabled	bool	false	Turn on Bluetooth (slows WiFi - one shared radio)
passkey	string	""	6-digit pairing passkey for the phone alarm; empty turns the alarm off. Masked in GET /api/config

Wind

See Wind (anemometer).

Field	Type	Default	Description
enabled	bool	false	Anemometer fitted
speedPin	int	27	Anemometer pulse input
directionEnabled	bool	false	Wind vane fitted
directionPin	int	35	Vane input - must be an ADC1 pin
kmhPerHz	float	2.4	Anemometer calibration (2.4 km/h per Hz for the common Misol/Davis-style cups)
directionOffsetDeg	float	0	Rotate the vane reading to true north
vanePullupOhms	float	10000	Pull-up resistor in the vane divider

---

Security Notes

SQMeter is designed for a trusted LAN environment. See the Security Guide for a full threat model and setup recommendations.

• By default there is no HTTP authentication; read-only and mutation endpoints are both accessible to any LAN device.
• Enable auth.enabled with a strong password to protect mutation endpoints (config save, OTA, restart, WiFi change).
• GET /api/config redacts stored secrets (WiFi, MQTT, OTA, and auth passwords), but still exposes non-secret settings.
• HTTP traffic is plaintext, so credentials sent via config updates are visible to LAN observers. TLS is not supported on the ESP32 in this firmware.
• Command-line ArduinoOTA is disabled unless ota.enabled is true and ota.password is set.
• rain.debugUart only affects serial logging for RG-15 command/response traffic. It does not log WiFi, MQTT, or OTA secrets.

Keep the device on a private network or isolated observatory VLAN. Do not expose port 80 or ArduinoOTA to the public internet.

Some settings are applied immediately, but hardware bus settings such as I2C pins, GPS pins, and RG-15 pins may require a restart because the sensors are initialised during firmware startup.

---

Updating via API

# Read current config
curl http://sqmeter.local/api/config

# Partial update — only the fields you include are changed
curl -X POST http://sqmeter.local/api/config \
  -H "Content-Type: application/json" \
  -d '{"deviceName": "backyard-sqm", "ntp": {"server1": "time.google.com"}}'

Password fields returned by GET /api/config are masked as ********. Sending a masked or empty password back to POST /api/config preserves the stored value; send null for a password field only when you intentionally want to clear it.

---

Backup & Restore

# Backup
curl http://sqmeter.local/api/config > config-backup.json

# Restore
curl -X POST http://sqmeter.local/api/config \
  -H "Content-Type: application/json" \
  -d @config-backup.json
